0.5ml Vape Cart Box

0.5 mL Vape Cart Boxes Built Around the Cartridge

0.5 mL vape cart boxes from Packaging Leaders can be developed around the complete cartridge profile instead of relying on a generic half-gram carton. Cartridge length, tank diameter, mouthpiece shape and connector profile can all affect the internal fit. Two cartridges with the same 0.5 mL capacity may therefore require different dielines or insert cavities. The packaging should begin with the actual hardware dimensions.

Measure the Full Cartridge

Overall length is only the first measurement. The widest part of the tank determines minimum internal width, while the mouthpiece can introduce a different profile at the top of the cartridge. The threaded base or connector may also require additional clearance or support. Packaging Leaders can use those measurements to establish the box dimensions before the insert and artwork are finalized.

Protect the Mouthpiece

The mouthpiece is usually one of the most exposed areas of the cartridge. An insert can support the cart farther down the body while leaving enough clearance around the top to avoid unnecessary pressure. For cartridges with tapered, ceramic or unusually shaped mouthpieces, the cavity can be adjusted so the product remains centered without forcing the tip against the carton.

Support the 510 Connector

Many cartridges use a 510-style threaded connection at the base. That lower section should not move freely or bear unnecessary pressure during handling. A precisely cut paperboard, foam or EVA insert can provide support around the cartridge body while leaving appropriate clearance for the threaded section. The objective is to keep the cart aligned from top to bottom.

Choose a Single-Cart Structure

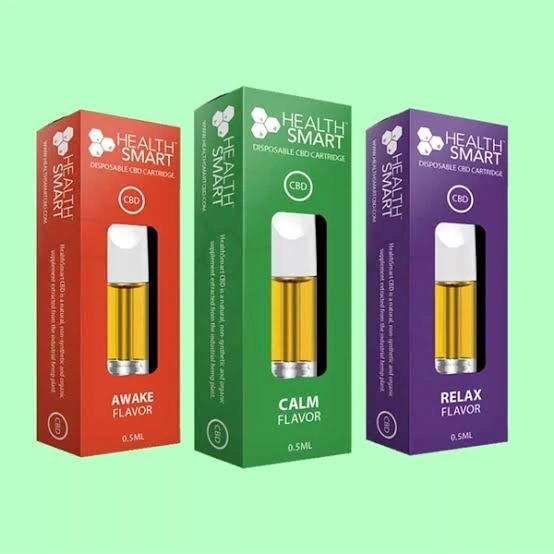

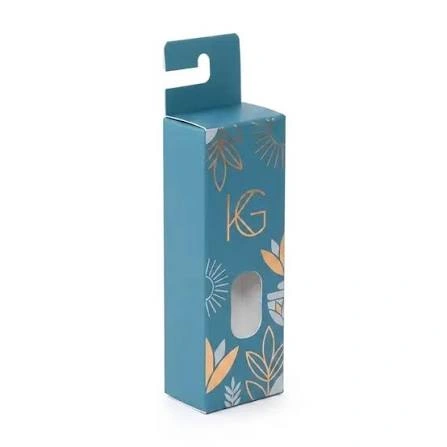

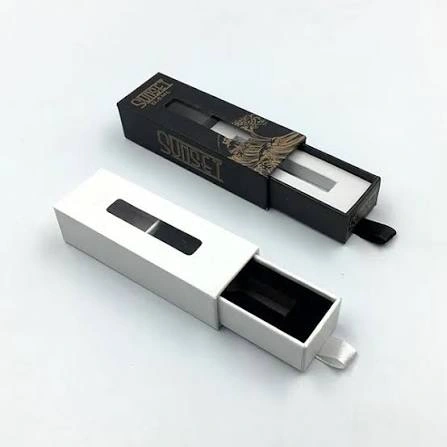

A straight tuck or reverse tuck carton can provide a compact retail format for a single cartridge. Sleeve-and-tray packaging creates a different opening experience, while rigid magnetic or drawer boxes can be developed for more presentation-focused products. The correct structure should follow the cartridge dimensions, insert type, distribution method and required level of presentation.

Add an Insert for a Defined Fit

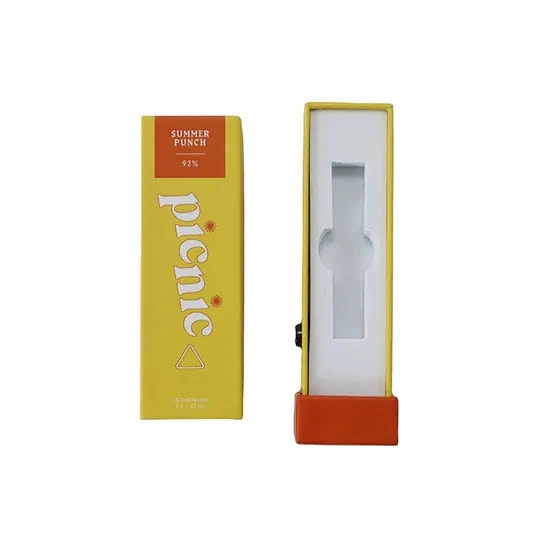

An insert prevents the cartridge from behaving like a loose object inside the box. Die-cut paperboard can provide a lightweight internal support system. Foam or EVA can create a more precisely shaped cavity where additional retention or presentation is required. The insert can be designed around the tank body rather than squeezing sensitive areas such as the mouthpiece or connector.

Keep the Package Proportional

Because a 0.5 mL cartridge is small, excessive empty space can make the packaging feel poorly fitted. The outer dimensions should leave enough room for structural clearance, artwork and required information without turning a compact product into an unnecessarily large carton. A proportional box can also help the cartridge remain visually centered when the package opens.

Build a Consistent 0.5 mL and 1 mL Range

Brands offering both half-gram and full-size cartridges can use a coordinated packaging system. Logo position, typography, information hierarchy and main artwork can stay consistent while carton height, insert dimensions or SKU colors change to match each hardware format. This allows 0.5 mL and 1 mL products to remain visually related without forcing them into identical structures.

Plan Information Areas Before Decoration

Small cartridge boxes have limited printable space. Product identification, quantity information, barcodes, batch or lot information, QR codes, warnings and other market-specific details may need dedicated areas. These panels should be planned during dieline development rather than squeezed around finished branding later. Decorative artwork can then be built around the information that must remain readable.

Add Finishing Without Losing Clarity

Foil stamping, Spot UV, embossing and debossing can highlight selected brand elements on a compact package. Matte, gloss and soft-touch finishes can also influence how the box feels in the hand. Because the available surface area is limited, restrained finishing often works better than applying several competing effects across every panel.

Design for the Hardware, Not Just the Volume

The phrase “0.5 mL” describes cartridge capacity. It does not define the mouthpiece, tank diameter, connector, overall length or insert requirements. Packaging Leaders develops 0.5 mL vape cart boxes around those physical details so the finished packaging feels fitted to the cartridge rather than merely labeled for a half-gram format.
