510 Vape Cartridge Packaging Built Around the Complete Cart

510 Vape Cartridge Packaging from Packaging Leaders can be developed around the actual cartridge dimensions rather than relying on one generic box for every 510-compatible product. Cartridges can differ in tank diameter, overall length, mouthpiece geometry, capacity and external hardware even when they use the same connection format. That makes the complete cartridge profile the starting point for the packaging.

Measure More Than the Cartridge Capacity

A 0.5 mL cartridge and a 1 mL cartridge will often require different internal dimensions, but capacity alone still does not define the finished package. Packaging Leaders can work from the cartridge’s total length, maximum diameter, mouthpiece profile and lower connector area. These measurements determine how closely the carton and insert can follow the hardware. The result is a more controlled fit with less unnecessary empty space.

Protect the Mouthpiece First

The mouthpiece is one of the most visible parts of the cartridge and can also be one of the easiest areas to damage cosmetically. A ceramic, plastic, metal or glass-style tip may need different internal clearance. The insert can support the cartridge farther down the body while leaving enough room around the upper section. This helps prevent the top of the cart from pressing directly against the carton or insert when the package closes.

Leave the 510 Connector Free From Unnecessary Pressure

The threaded base should not be the main point supporting the weight of the cartridge. Packaging Leaders can design the cavity so stronger portions of the cartridge body provide the primary retention while the connector remains properly cleared. This becomes particularly important in vertical packaging where the product may otherwise rest directly on its threaded end. Supporting the cartridge correctly helps keep the presentation aligned without forcing delicate hardware against the box.

Choose Vertical or Horizontal Presentation

A 510 cartridge does not always have to stand upright. Vertical packaging creates a narrow footprint and can work efficiently for compact retail shelves. Horizontal presentation can expose more of the cartridge when a tray or rigid box is opened. The orientation can also influence window position, insert shape and the amount of surface area available for branding. Packaging Leaders can choose the orientation according to the cartridge dimensions and intended retail experience.

Use the Insert to Stop Rotation and Rattling

A narrow cartridge can shift, rotate and rattle inside a carton that is only slightly oversized. Paperboard inserts can create a lightweight channel around the hardware. Foam or EVA can provide a closer cavity for presentation-focused boxes. Molded pulp or other insert materials can also be considered where suitable. The objective is not to squeeze the cartridge. It is to keep it in the intended position from packing through final presentation.

Package 0.5 mL and 1 mL Carts as One Product Family

Brands often sell more than one cartridge capacity. Packaging Leaders can develop coordinated 0.5 mL and 1 mL cartons that share the same typography, colors, logo position and general artwork architecture while changing the dieline and insert where needed. This maintains brand consistency without pretending different cartridge sizes require identical packaging. The same strategy can also support several mouthpiece or hardware variants.

Add a Window Around the Product Position

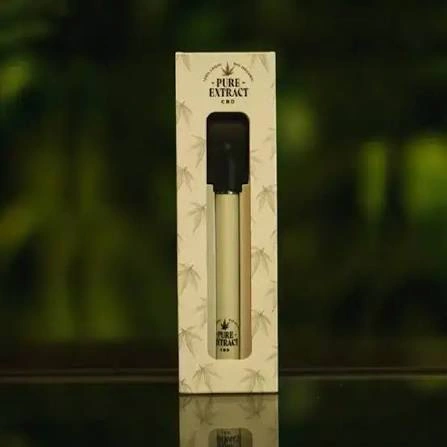

A die-cut window can reveal the tank, mouthpiece or other recognizable part of the cartridge before opening. The viewing area should be positioned after the cartridge cavity is established. If the cart moves away from the window, the display loses its purpose. A fitted insert can keep the hardware centered while enough board remains around the cutout to maintain structural strength.

Choose the Retail Box Style

A straight tuck or reverse tuck carton can provide an efficient package for a single cartridge. A sleeve-and-tray box creates a controlled slide-out reveal. A drawer box can combine product retention with a more deliberate opening action. A magnetic or two-piece rigid box can support presentation-focused cartridge lines. Packaging Leaders can select the structure according to hardware dimensions, insert, distribution needs and desired presentation.

Add Tamper Evidence as a Separate Feature

Tamper evidence has a different purpose from a standard closing flap. Seals, peel-away features, labels or other suitable systems can be incorporated where the product and destination market call for them. The tamper-evident element should be positioned so it does not interfere with the insert or cartridge removal. Where a specific tested or regulated function is required, the finished configuration should be evaluated against the applicable requirements before marketing claims are made.

Treat Child Resistance as a Tested Function

A tight sleeve or unusual opening mechanism is not automatically child resistant. Push-and-slide, button-lock and other controlled-access structures can be considered where required. If the finished packaging needs to be represented as child resistant, Packaging Leaders should work from a structure with appropriate testing or documentation for the intended configuration and market. This keeps functional safety claims separate from ordinary structural customization.

Make Cartridge Identification Easy

A small box can still require significant product information. The artwork can reserve clear areas for product identity, cartridge capacity, hardware model, approved specifications, batch or lot information, barcodes and QR codes. Where cannabis or nicotine products are involved, additional destination-market warnings or symbols may also be required. These spaces should be mapped before decorative graphics fill the available panels.

Build Multi-SKU Artwork Without Losing Consistency

A single cartridge platform can support several product variations. The main dieline, logo position and typography can stay consistent while approved SKU-specific colors, product names or information change. This makes larger product ranges easier to recognize and easier to manage. Packaging Leaders can also keep structural files separate from artwork versions so a packaging update does not create unnecessary changes to the cartridge fit.

Coordinate Individual Boxes With Display Packaging

Retailers may present several 510 cartridges together in a countertop display. The dimensions of the individual box affect how many units can fit across each row and how large the display tray needs to be. Packaging Leaders can coordinate the single-cart carton and multi-unit display so dimensions, branding and pack-out work together. This creates a more complete packaging system from individual unit to retail counter.

Use Finishing Without Losing Technical Clarity

Foil stamping, embossing, debossing and Spot UV can highlight selected branding elements. Matte, gloss and soft-touch finishes can change the overall surface feel. However, a compact cartridge carton often has limited space for product details. Finishing should therefore support the visual hierarchy without reducing the readability of technical or market-specific information.

Design for the Cartridge Above the Thread
